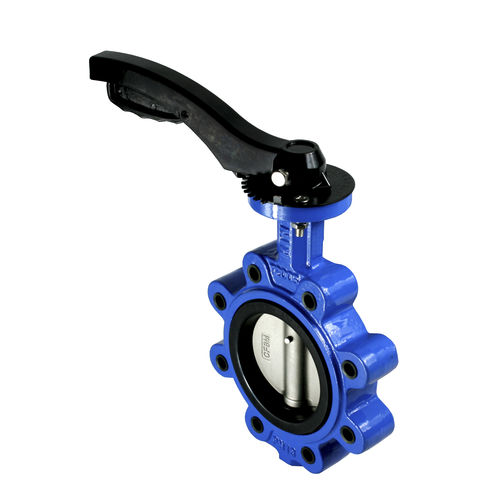

Lug type valve 276E

butterflyleverstainless steel

BUTTERFLY VALVE LUG TYPE EPDM SEAT The KTN 276IE is an economical and quality product, manufactured in accordance with strict European regulations. Its design allows the opening or closing of the fluid by turning a blade called «butterfly», it has an EPDM seat. Its narrow design allows the valve to be easily installed unlike other larger valves. It allows operating at temperatures ranging from -35ºC / 200ºC. We have the KTN 276IE in stock for immediate shipping measures between DN 40 – DN 300. Superior measures, options and special materials on request. Features: •Butterfly valve LUG type KTN 276IE AISI 316 •Shaft and disc: Stainless steel AISI 316. •Seat: EPDM. O'Ring: Vitón. •Actuator mounting pad according to ISO 5211. •Working temperature: -35ºC / 130ºC. Standard: •Design: API 609 •Flange dimension: DIN PN10/16. ANSI 125/150 •Superior flange: ISO 5211 •Face to face dimension: EN 558-1 20 series
