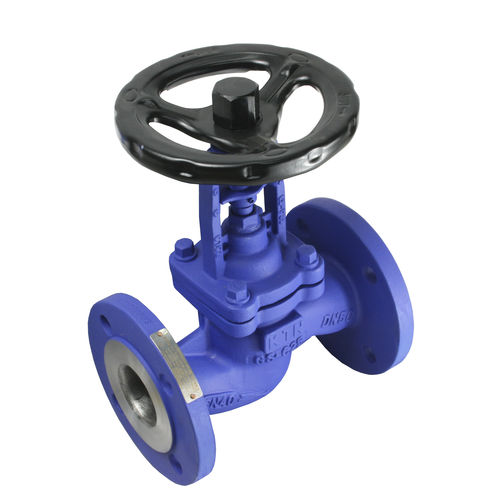

Valve with bellows seal 423fglobewith handwheelfor control
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- with handwheel
- Function
- for control, flow-control
- Media
- for water, for oil
- Body
- flange, carbon steel, cast steel
- Applications
- for industrial applications
- Other characteristics
- high-pressure, DIN, with bellows seal
- DN
Max.: 200 mm
(7.874 in)Min.: 15 mm
(0.591 in)- Pressure
16 bar
(232.1 psi)- Temperature
Max.: 350 °C
(662 °F)Min.: -20 °C
(-4 °F)- Flow rate
Max.: 730 m³/h
(25,779.71 ft³/h)Min.: 4 m³/h
(141.26 ft³/h)
Description
The KTN 423f is our globe valve with bellows connections DIN . Carbon steel body, it has an anti-leakage stem and a non-ascending shaft, it has gasket and spiral-wound graphite gaskets. Lubricator for lubrication of the shaft and head bushings. The range is from DN 15 to DN 200. Its pressure range: PN16 . The working temperature range covers -20ºC to + 350ºC . Valve designed for vacuum service and high temperatures.
