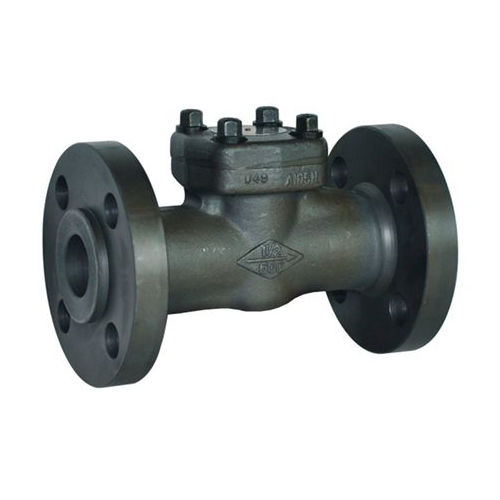

Swing check valve 534Cflangewrought steel
Add to favorites
Compare this product
Characteristics
- Type
- swing
- Body
- flange
- Material
- wrought steel
- DN
Min.: 150 mm
(5.906 in)Max.: 4,500 mm
(177.165 in)
Description
ANSI FLANGES CHECK VALVE Cl.150-300
Description
•Standard: API 602 y ANSI B16.34
•Face to face dimension: ANSI B16.10. Flange dimension
•Test: API 598.
•Construction: B.C&W.C.
•Seal: Acero inoxidable + grafito
•Body: ASTM 105, LF2, F5, F11, F22, F304L, F316, F316L
•Disc: CR13, STL 6#, SS304L, SS316, SS316L
•Seat: CR13, STL 6#, SS304L, SS316, SS316L
•Shaft and ping: ASTMA 182 - F6a, F304/F316
