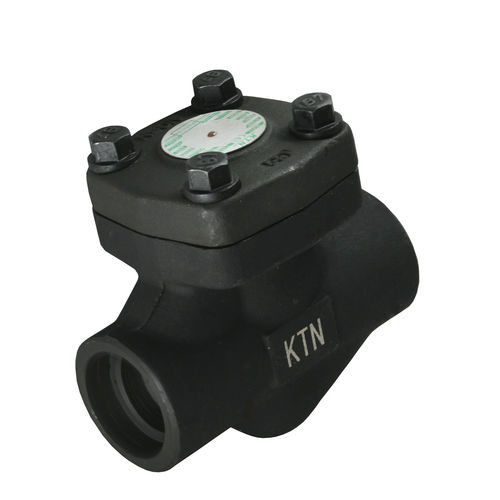

Threaded check valve 584swingwrought steel
Add to favorites
Compare this product
Characteristics
- Type
- swing
- Body
- threaded
- Material
- wrought steel
- DN
Max.: 4,500 mm
(177.165 in)Min.: 800 mm
(31.496 in)- Pressure
140 bar
(2,030.5 psi)- Temperature
425 °C
(797 °F)
Description
NPT THREAD CHECK VALVE 800 TRIM5
Description
•Forged steel A105
•NPT Thread
•Class 800
•Standard: API 602
•Threaded ends: ANSI B1.20.1
•Test: API 598
•Max. working temperature: 425ºC
