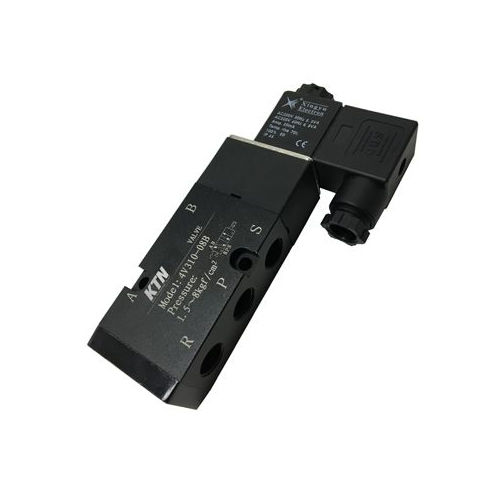

Pilot-operated solenoid valve 12107
3-wayairNAMUR

pilot-operated solenoid valve
pilot-operated solenoid valve
Add to favorites
Compare this product


Characteristics

Control
pilot-operated
Ports/positions
3-way
Medium
air
Body
NAMUR, IP65
Other characteristics
wear-resistant
Voltage

24 V, 220 V

Temperature

Max.: 50 °C
(122 °F)

Min.: 5 °C
(41 °F)

Pressure

Max.: 800,000 Pa
(116 psi)

Min.: 150,000 Pa
(21.8 psi)

Description

SOLENOID VALVE 3/2 WAY AND 5/2 WAY NAMUR SPECS: •MODEL: 4V310-08B oTYPE: 5/2 oFLOW: 25mm2 (Cv = 1.40) •MODEL: 3V310-08 oTYPE: 3/2 oFLOW: 25mm2 (Cv = 1.40) GENERAL FEATURES •CONNECTION PORTS: INPUT = OUTPUT = EXHAUST = G1 / 4 ” •MEDIA: CLEAN AIR •TYPE OF WORK: PILOT WORKING •PRESSURE: 0.15 ~ 0.8MPa •MAX PRESSURE: 1.2MPa TEMP •ENVIRONMENT: - 5 ~ 50ºC •STANDARD VOLTAGE: C24VAC24V 50Hz / 60HzAC220V 50Hz / 60Hz •VOLTAGE TOLERANCE: ± 10% AC •POWER: 4.5.5VA DC: 3W •INSULATION CLASS: CLASS F. IP65 •TERMINAL: AIR CABLE OR DIN 43650B PIN •FREQUENCY: 5 CYCLES / s •ANSWER TIME: 0.05s LOW ENERGY CONSUMPTION, ESCAPES IN THE PILOT AND THE MAIN VALVE, HIGH WEAR RESISTANCE AND LONG USEFUL LIFE.
