Weld valve 441/800globewith handwheelstainless steel
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- with handwheel
- Body
- weld, stainless steel, forged steel
- Applications
- for industrial applications
- DN
Max.: 50 mm
(1.969 in)Min.: 15 mm
(0.591 in)- Temperature
425 °C
(797 °F)- Flow rate
Max.: 19 m³/h
(670.98 ft³/h)Min.: 1 m³/h
(35.31 ft³/h)
Description

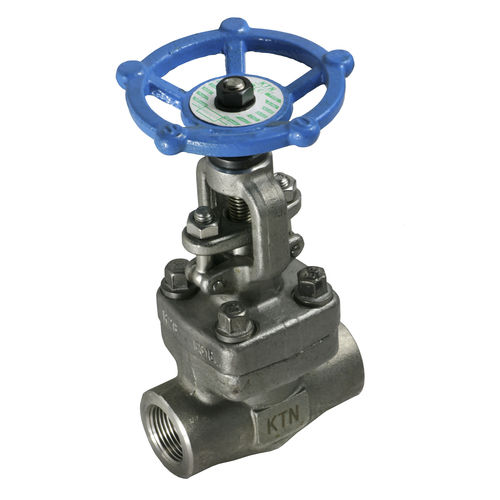

The KTN 441/800 is our globe valve class 800 and weldable ends. Made of F316 stainless steel forging . The range is from 1/2 ″ to 2 ″ (inches). Maximum working pressure: 140 Bar. The working temperature range covers -29ºC to + 425ºC . The valve features a stellite-hardened stainless steel seat. Suitable for conducting and strangling the passage of aqueous media, oil and gas.
