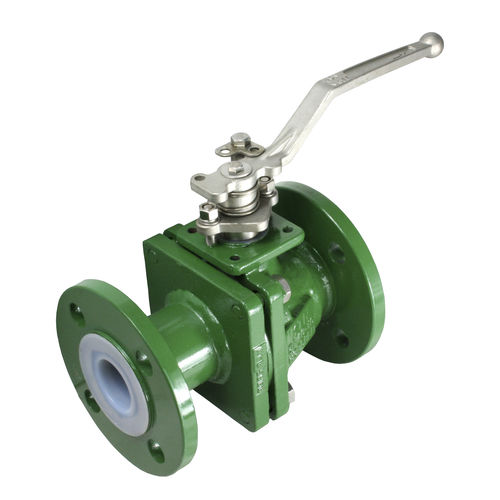

PFA-lined valve 123Tfloating balllevershut-off
Add to favorites
Compare this product
Characteristics
- Type
- floating ball
- Operation
- lever
- Function
- shut-off, regulating
- Media
- for water, for liquid food products and beverages, for sludge, for chemical products, for fuel, for liquefied petroleum gas, for LPG, petroleum, for petroleum
- Body
- flange, PFA-lined, carbon steel, PTFE
- Applications
- for industrial applications, for the chemical industry, for the food industry, for liquids
- Other characteristics
- ISO, bidirectional, DIN, full-flow, corrosion-resistant, anti-static, rising stem, integral, chemically inert, fire-safe
- DN
Min.: 15 mm
(0.591 in)Max.: 100 mm
(3.937 in)- Pressure
10 bar
(145 psi)- Temperature
Min.: -29 °C
(-20 °F)Max.: 180 °C
(356 °F)
Description
PFA LINED, FULL BORE, DIN BALL VALVE – KTN 123T
The KTN 123T is our PFA lined DIN flanged full port ball valve. The range is from DN15 to DN150. Suitable for handling large quantities of highly corrosive media thanks to its advanced design and the resistance conferred by the PFA coating. The working temperature range covers -29ºC to + 180ºC
Technical features
The 123T incorporates a series of elements that improve safety and performance; A safety lock, An anti-static spring design for fire safe; ISO 5211 mounting pad for actuator easy instalation; A “spyral type®” packing design for mainte-nance free; An integral ball and stem for stem blowout prevents and long life use; T-slots locked-in design to prevent liner suction in vacuum services.
Design:
API 608
Face to face:
ISO 5752 Series1
Flange conections:
EN 1092-1
Inspection and test:
API 598
Maximum working temperature:
-29ºC + 180ºC
Maximum working pressure:
PN10
Media:
Acid, Alkali, Salt
