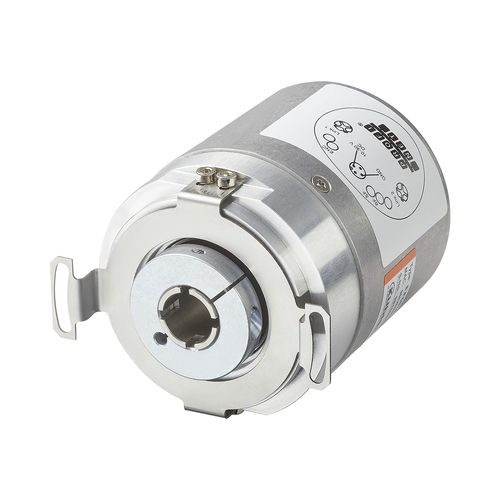

Absolute rotary encoder Sendix F5878opticalsingle-turnhollow-shaft
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- optical
- Construction
- hollow-shaft, single-turn
- Output signal
- Ethernet/IP
- Protection level
- IP65
- Housing diameter
58 mm
(2.28 in)- Shaft diameter
15 mm
(0.59 in)
Description
High precision
Without gear with 100% magnetic insensitivity
Industry 4.0 / IIoT ready
19 bits singleturn
Max 1/2" hollow shaft, blind hole
Max 15 mm hollow shaft, blind hole
New generation Industrial Ethernet encoders with PROFINET IO interface.
The Sendix F58 singleturn is a particularly high resolution optical encoder without gears and with 100 percent magnetic insensitivity. 19 bits total resolution, shaft up to 10 mm, blind hollow shaft up to 15 mm and certified PROFINET functionality. A minimum cycle time of 250 µs, the PROFIdrive application profile and a web server for FW updates are supported.
