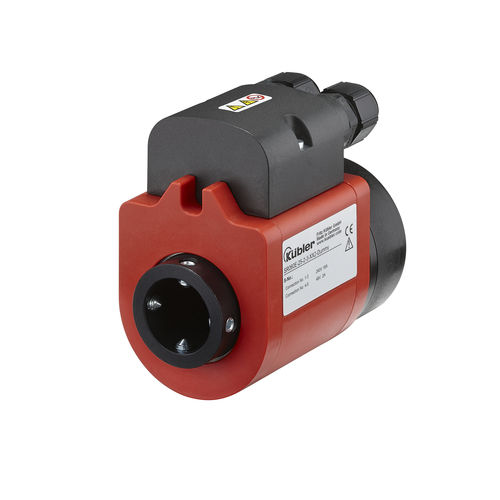

Hollow-shaft slip ring SR060E

for packagingpackaging machinestainless steel

The flow pack specialist: the compact slip ring. In general slip rings are used to transmit power, signals or data from a stationary to a rotating platform. The SR060E is a compact, economical slip ring for up to 3 power and 2 signal transmissions. New innovative contact materials ensure long service life and extremely low-maintenance operation. The round shape with smooth surfaces and high protection level allows easy cleaning. V200 version: Additional connection options through implementation of M12 connectors for easiest mounting and maintenance. Benefits Compact Dimensions 60 x 98 mm. Can be used as a pair from a center distance between sealing rollers as little as 60 mm. Various equipment variants of the transmission paths for max. 3 x load and 2 x signal transmission. Easily accessible connections. Standard version V100 with load current up to 20 A. Version V200 with plug connectors for load and signal connections. Low-maintenance Maintenance cycles only every 100 million revolutions. No contact oil required.
