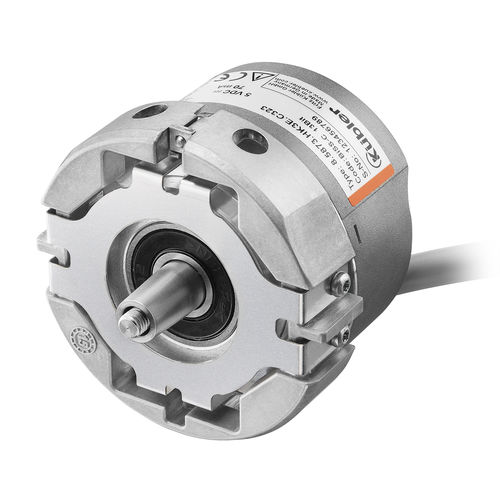

Absolute rotary encoder Sendix 5873

opticalsolid-shaftsingle-turn

High precision With incremental track SinCos Resilient 2.048 ppr incremental The standard for direct drives. Encoder with conical shaft. The absolute encoder Singleturn Sendix 5873 in the Motor-Line version with SSI or BiSS interface is predestined for mounting on direct drives. With the high fully digital 21 bit resolution or 17 bit + 2048 ppr SinCos incremental track, the drive is optimally controlled. Your benefits: Plug-and-Play during commissioning including electronic data sheet, as well as the option of setting the absolute measuring system to a predefined position value. Reliable and insensitive Robust bearing construction in safety Lock™ Design for resistance to vibration and installation errors. Due to IP67 protection and wide temperature range from -40°C to +90°C also suitable for outdoor use. Versatile High precision with a data update of the position value ≤ 1μs. High-resolution feedback in real time via 21-bit fully digital or incremental SinCos and RS422 outputs. BiSS-C Encoder Profile BP3. Short control cycles, clock frequency with SSI up to 2 MHz / with BiSS up to 10 MHz.
