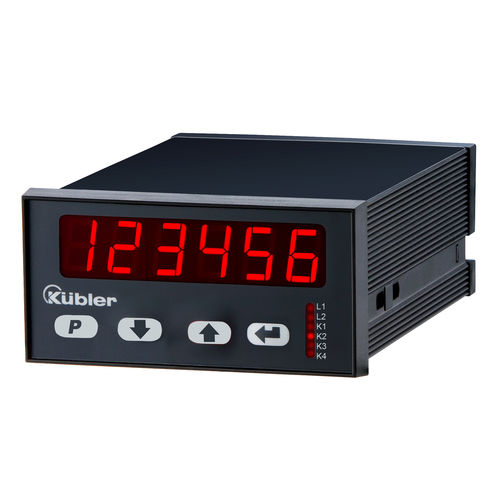

Pulse counter 575

electronicanalog outputprogrammable

3 display values: counter 1, 2 and calculated display. 2 separate freely scalable counting inputs: SSI master, SSI slave or TTL incremental (also with inverted inputs) max. input frequency 1 MHz/Channel. Very bright LED display, 15 mm (6 digits), 10 mm (8 digits) high. 4 freely programmable fast transistor outputs with 350 mA output current each. Step or trailing presets. Simple programming - with function codes, depending on the operating mode set. With 8 fixed, different counter functions, e.g: Single counting, difference and total counting of both inputs, separate display of the inputs. Compact and versatile AC and DC supply voltage in one device. Simple programming with 4 keys and programmable dual function. Can be used as a counter or position indicator with limit values at which 2 values are monitored or calculated with respect to each other. 4 fast, programmable inputs with various functions such as reset, gate, display memory, reference input or display value switching. Scalable analog output 0/4 to 20 mA, ±10 V or 0 to 10 V. RS232 interface as standard for parameterisation, reading of values and changes during operation. 2 auxiliary voltages for sensors: 5.2 V DC and 24 V DC.
