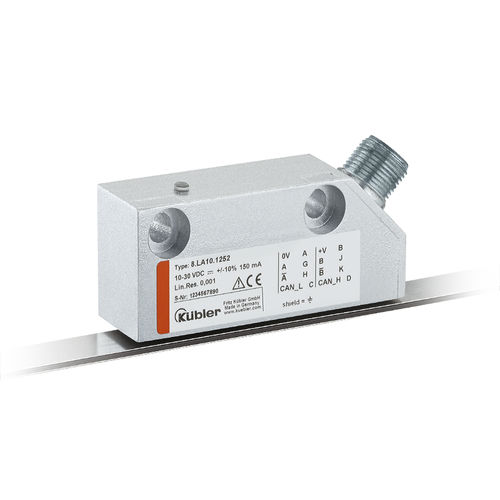

Distance measuring system Limes LA10 / BA1

lengthhumiditywear

Magnetic length measuring system, absolute – no reference run necessary. The Limes LA10 contactless absolute magnetic length measuring system. / BA1 contactless absolute magnetic length measuring system - consisting of the sensor head LA10 and the magnetic tape BA1 - enables a resolution of up to 1 μm with a maximum distance of 0.2 mm between sensor and tape (including cover tape). Thanks to the additional SinCos interface, the LA10 / BA1 measuring system is ideally suited for use in linear drive technology. Benefits Robust and versatile High resolution - 1μm / measuring length max. 8 m. Non-contact magnetic absolute measuring technology – therefore no wear – no referencing movement required. Sturdy housing with IP64 protection. For highly dynamic control. Optional SinCos signal (1 Vpp) for dynamic movement control with 1 mm pole pitch. Masking tape protecting the magnetic band. Easy installation Simple glued assembly of the magnetic band. Requires very little installation space. Robust measuring principle – insensitive to dirt, smoke and humidity.
