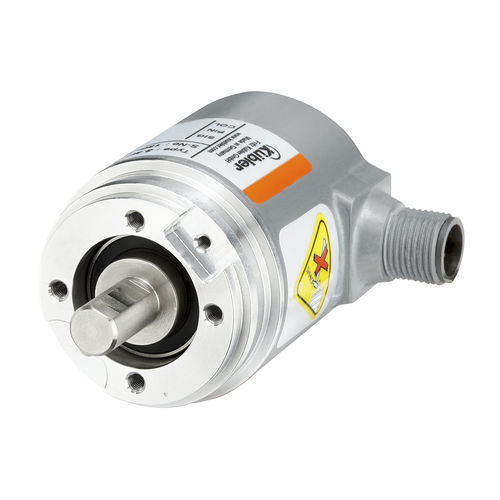

Absolute rotary encoder Sendix M3658A

magnetic14-bit14-bit

Resilient Wear-free Magnetic – robust Dimension Ø 36 mm 14 bits singleturn Max 10 mm shaft, with flat surface Max 1/4" shaft, with flat surface Magnetic singleturn encoder with CANopen interface. The Sendix M36 is a magnetic singleturn encoder in compact design. It is characterized by robustness, reliability and cost-efficiency. Reliable and insensitive Sturdy bearing construction in Safety-Lock™ design for resistance against vibration and installation errors. Reduced number of components ensures insensitivity. IP67 protection and wide temperature range from -40 °C to +85 °C. Up-to-the-minute fieldbus performance LSS services for configuration of the node address and baud rate. Variable PDO mapping in the memory. Configuration management (bootloader).
