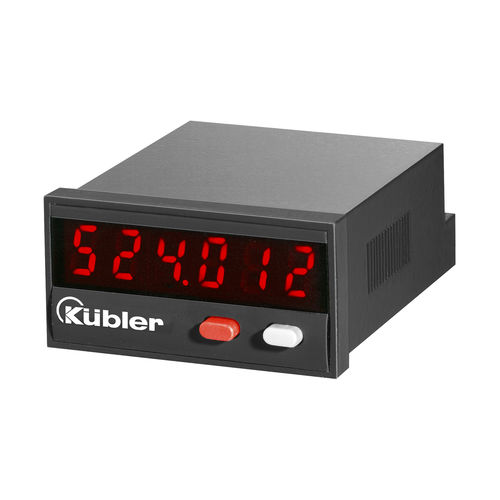

Pulse counter Codix 524

timedigitalelectronic

Fast counter and frequency input, input frequency max. 60 kHz Robust housing - IP65 protected Very bright LED display, 8 mm high, 6 digits Exact and high-precision frequency measurement method (HRA-High Rate Accuracy System) Frequencies up to 38 Hz are measured by a period duration measurement are evaluated. Frequencies > 38 Hz are controlled via a special Gate time measurement evaluated. Despite a short gate time, a very high accuracy of none Pulse loss with simultaneous motor start User-friendly and universal Large keys (can also be operated with gloves) Programming: Simple and uniform programming and operation by plain text programming. Access to programming also during operation with safety prompt Individually adjustable scaling Multiplication and division factor (0.0001 to 99.9999), in order to calculate corresponding units in e.g. position in 1/10 mm and speed to be displayed in /RPM 4 different counter input types for the position display: Counting direction, difference or addition mode, phase discriminator with single, double, or quadruple evaluation Frequency measurement (display in 1/min or 1/sec) Time counting: Pulse width or period duration measurement in hours, minutes or seconds, as well as real-time display Inputs: As an alternative to the HTL inputs, the following devices are also available with 4 to 30 V DC input level for use as a parallel display for PLC
