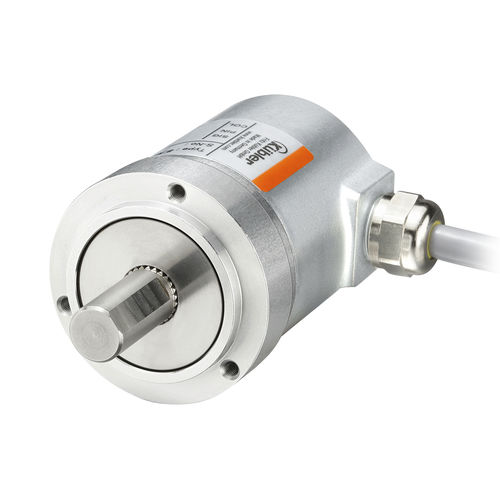

Absolute rotary encoder Sendix M3651AR

magnetic14-bit14-bit

Standalone operation in emergency Particularly resistant Magnetic – robust Max 1/4" shaft, with flat surface For extreme requirements: Magnetic singleturn encoder with analog interface. The Sendix M3651AR singleturn encoders with analog interface and magnetic sensor technology are particularly flexible in use due to their diverse interfaces and measuring ranges. The “R”obust version is particularly suitable for use in harsh environments. Protected up to IP69k, resistance against shock and extreme temperature fluctuations, the Sendix M36 encoders are suitable even for demanding outdoor applications. Highest robustness Sturdy bearing construction in Safety-Lockplus™ design for particularly high resistance. Extra large bearings. Mechanically protected shaft seal. High IP67 and IP69k protection in one device. Wide temperature range from -40 °C to +85 °C. Applications Current output 4 to 20 mA. Voltage output 0 to 10 V or 0 to 5 V Different measuring ranges. Set input for easy start-up.
