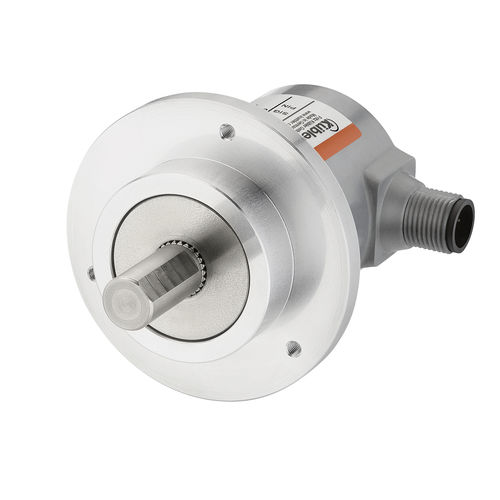

Absolute rotary encoder Sendix M5851Amagneticsingle-turnanalog
Add to favorites
Compare this product
Characteristics
- Type
- absolute
- Technology
- magnetic
- Construction
- single-turn
- Output signal
- analog
- Supply voltage
- 5 VDC
- Protection level
- robust, IP65
- Applications
- industrial
- Housing diameter
58 mm
(2.28 in)- Shaft diameter
10 mm
(0.39 in)
Description
Particularly resistant
Magnetic – robust
Magnetic singleturn encoder with analog interface.
The Sendix M5851A is a magnetic singleturn encoder in compact design. High robustness and high resolution make this encoder the ideal device for use in demanding applications.
Highest robustness
Sturdy bearing construction in Safety-Lockplus™ design for particularly high resistance.
Extra large bearings.
Mechanically protected shaft seal.
Wide temperature range from -40°C to +85°C.
Application oriented
Current output 4 to 20 mA.
Voltage output 0 to 10 V or 0 to 5 V.
Different measuring ranges.
Set input for easy start-up.
