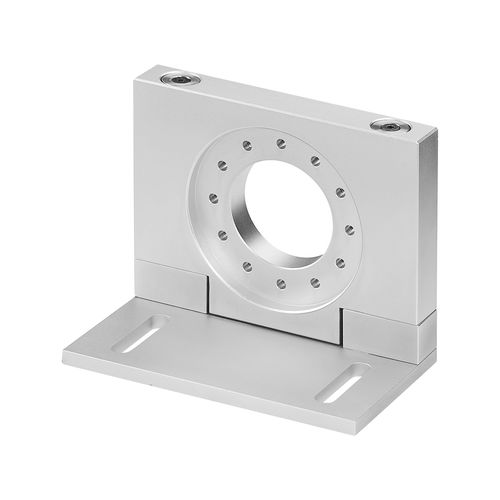

Mounting bracket MWE40

Compact solution Flexible assembly Can be combined with encoder size 58 mm Encoder adaptable in 30° steps Contact force 25 N Spring bracket for incremental encoders KIS50, 5000 and 5805 as well as for absolute encoders M58, F58 and 58 The MWE40 spring bracket in combination with a rotary encoder and a measuring wheel is the ideal solution for reliable speed, position and distance measurement in applications with linear movements. An integrated spring ensures the contact pressure of the measuring wheel on the measuring surface, which is necessary for reliable measured value acquisition. The system's compact design makes it suitable for even the tightest installation spaces and it can be quickly and easily installed horizontally or vertically. Mechanical - Measuring system - Measuring Wheel Systems Contact force - 25 N Working temperature - - 20 °C ... + 70 °C Weight - 350 g
