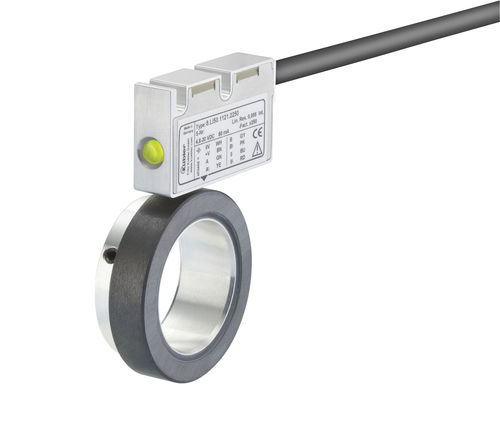

Incremental rotary encoder RLI50

magnetichollow-shaftRS-422

with reference signal Wear-free Space and cost savings Contactless 3.600 ppr incremental Max 35 mm hollow shaft, through Max 1" hollow shaft, through Bearingless encoder for shaft diameter up to 35 mm. Thanks to its installation depth of only 16 mm, the bearingless magnetic rotary encoder RI50 / Limes LI50, comprising a magnetic ring and sensor head, is ideally suited for plants and machinery where space is very tight. The non-contact measuring principle allows for error-free use even under harsh environmental conditions, as well as ensuring a long service life. In contrast to our measuring system RI20 / Limes LI20, a single zero pulse is also implemented here. For outdoor use with extremely sturdy aluminum housing and stainless steel cover, wide temperature range as well as a UV-resistant cable. IP68 / IP69k protection, special encapsulation technology and tested resistance to cyclic humidity and damp heat offer the highest levels of reliability, even in exposed outdoor use. Resistant and insensitive High shock and vibration resistance. Sturdy housing with IP67 protection, optionally with special housing for high resistance against condensation (IP68 / IP69k, resistance against cyclic humidity per EN 60068-3-38 as well as humidity and heat per EN 60068-3-78). Contactless and wear-free measuring system for long service life. Fast commissioning Function indication by LED. Large mounting tolerance between magnetic ring and sensor head. Requires very little installation space. Easy adjustment by mounting via slotted holes.
