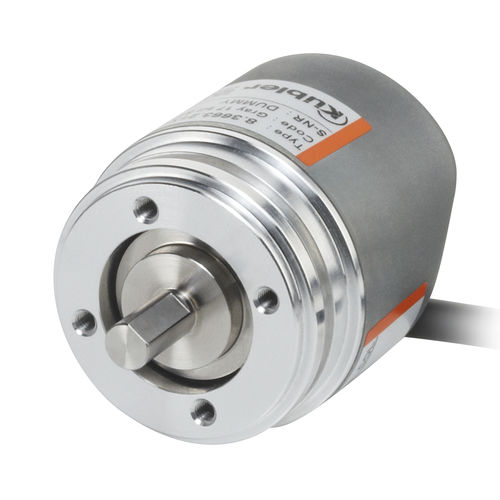

Incremental rotary encoder Sendix F3653

absoluteopticalmagnetic

High precision Particularly resistant Without gear with 100% magnetic insensitivity 2.048 ppr incremental Intelligent Scan Technology™ – powerful and economical at the same time. The absolute encoders Singleturn Sendix F3653 / F3673 with patented Intelligent Scan Technology™ and SSI or BiSS interface are characterized by special robustness and compactness. With dimensions of only 36 x 42 mm, a through hollow shaft up to 8 mm or a blind hollow shaft up to 10 mm is possible. The high-precision optical sensors achieve a resolution of 17 bits. Reliable and insensitive Robust bearing construction in safety Lock™ Design for resistance to vibration and installation errors. Due to IP67 protection and wide temperature range from -40°C to +90°C also suitable for outdoor use. Patented Intelligent Scan Technology™ with all single and multiturn functions on one OptoASIC - thus highest reliability, a high resolution of up to 17 bits and 100% magnetic insensitivity. Performance optimized High precision with a data update of the position value ≤ 1 µs. High-resolution feedback in real time via SinCos and RS422 incremental outputs. Short control cycles, clock frequency with SSI up to 2 MHz / with BiSS up to 10 MHz.
