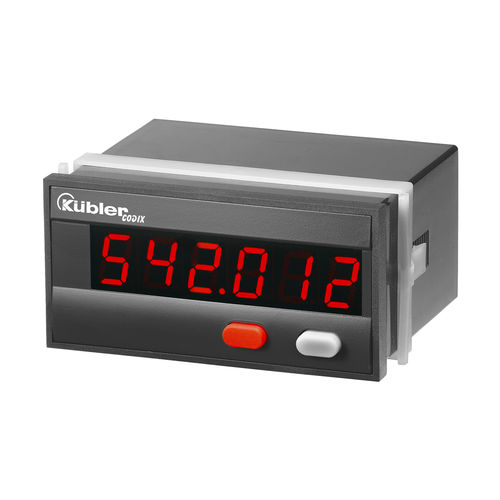

Non-contact tachometer Codix 542

DIN railwith LED displayrobust

Very bright LED display, 14 mm digit height Fast counter input for input frequency of max. 60 kHz Robust housing / IP65 protection Exact and highly accurate frequency measurement method (HRA - High Rate Accuracy System) Frequencies up to 38 Hz are evaluated by a period measurement. Frequencies > 38 Hz are evaluated via a special gate time measurement. Despite a short gate time, a very high accuracy of < 0.1% is achieved. The measurement result is available after max. 50 ms. User-friendly and universal Large keys - can also be operated with gloves Simple and uniform programming and operation through plain text programming. Programmable decimal point, adjustable from 0.0 to 0.000 (determines the resolution) As an alternative to the HTL inputs, devices with 4 to 30 V DC input level available Individually adjustable scaling Multiplication and division factor (0.0001 to 99.9999) to display corresponding units in e.g. frequencies in Hz and speed in U/min Adjustable waiting time - until 0 is displayed Display in 1/min or 1/sec AC or DC supply with sensor power supply Optionally with output for standstill monitoring
