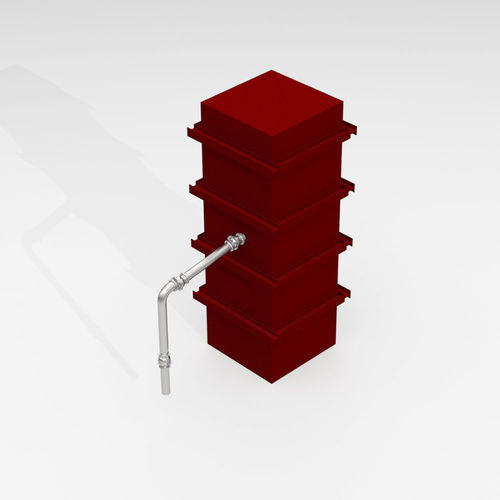

Compensator TYP KG

Hinged compensator in heavy duty design for coal dust pipes, with optimised flow pattern. Fuels: solid Application: Power plant technology NOMINAL SIZE: DN 150 TO DN 1000 OPERATING PRESSURE: MAX. 10,0 BAR G OPERATING TEMPERATURE: MAX. + 200°C YOUR BENEFITS No sealing air necessary Compensation of extremely high deflections Compensation of axial displacement No maintenance required Applicable at high operating temperatures OPERATION DETAILS The hinged compensator is used in coal dust pipes to balance the boiler expansions. The hinged compensator has been adapted to radial deflections and axial displacements. Due to the design of the hinged compensator the flow velocity becomes accelerated – this minimises deposit formations.
