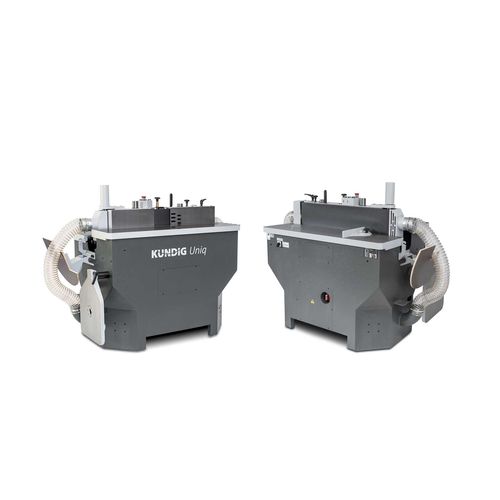

Belt sanding machine Uniq

electricfor woodoscillating

Our Uniq series is the full-fledged basis of our product range and shares all the features that have helped the Kündig edge sanding machine gain its reputation as a robust, versatile precision instrument. Part of its extremely solid construction is the oscillating sanding unit, which offers a maximum oscillation range of 90mm/3.5" and the possibility of motorised pivoting between 90 and 45°. All common edge processing operations can be carried out using the four sanding stations of the Uniq edge sander. Ingenious Design - The Sanding Unit The heart of all our edge sanding machines is the sanding unit. It offers a whole range of intelligent features. For example, the sanding belt does not oscillate by tilting the belt rollers. Instead, the entire sanding unit moves up and down. The oscillation stroke as well as the oscillation range are simply set by the use of two buttons. Maximum oscillation range is a whopping 90mm/3.5". Thanks to the flexible adjustment and the large oscillation range, sanding belts can be used optimally over their entire width, without any tedious adjustment of the working table height. The oscillation mechanism is driven by a separate motor. The sanding unit can also be pivoted conveniently by means of a rotary switch. The pivoting mechanism is also driven by its own motor. The unit can be tilted between 90° and 45°. Thanks to the well thought-out mechanism, full oscillation is always available (at any sanding unit angle) and sanding on both sides is possible, even simultaneously. The different table heights of the front and rear sanding station also ensure that the belt is not used at the same height at the same time.
