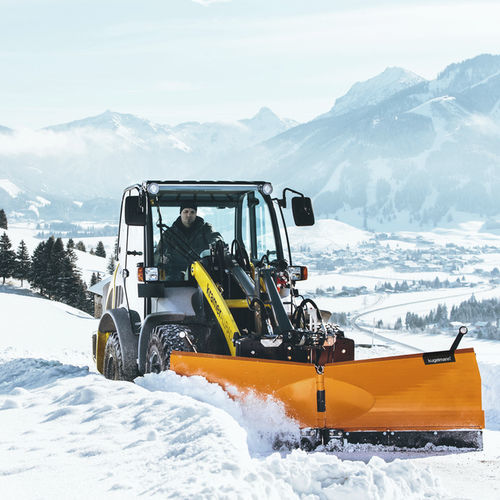

V snowplough V series

GENTLE SNOW CLEARING Snow ploughs for clean snow removal without damaging roads and tracks. CLOSED SNOW CLEARING EDGE No snow is left in the center even with a V-shaped blade. INDIVIDUALLY ADJUSTABLE BLADES The adjustment range of the blades is up to 30° forward and up to 30° backward. Convenient hydraulic control of all settings from the tractor kugelmann snow ploughs stand for clean snow removal without damaging roads and sidewalks. The scraper blades made of Vulkollan or steel are subject to low wear and tear. The unique solution of an absolutely closed snow clearing edge means that no snow is left in the center even with a V-shaped blade. Convenient hydraulic control of all settings from the tractor. The adjustment range of the individual blades is up to 30° forward and up to 30° backward. The mounting frame is equipped with all bores for mounting plates, Weiste triangle or for three-point attachment. Also the pivot for the hydraulic lateral adjustment is positioned here. The scraper blades are inclined to the road surface by 20° for a high snow clearing capacity. A unique feature is the precise guiding by means of the slide pad placed close to the scraper blade. The slide pad supports gentle snow clearing and prevents the blade from bouncing on uneven surfaces. If the scraper blade folds backward due to any obstacles, also the slide pad draws back to prevent possible damage. A spindle ensures precise height adjustment. The silicone shock absorber protects the entire frame and the hydraulic system of the tractor.
