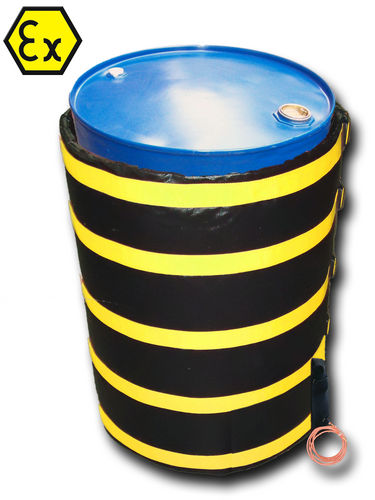

Jacket drum heater 200L, Atex 230V 1050W

Drum Heaters Series Ex Features and Benefits: • Gentle and uniform heat transfer due to a dynamic and level depended heat emission • Extended protection grade IP54 and hydrophobic materials • Complete PTFE- (Teflon®) coating for a maximum long-life cycle and highest reliability against bases, acids, solvents, etc. – free of silicone • Circumferential (360º C) belts with adjustable buckles ensuring an optimal fitting and easy handling • Real 3-dimensional design for an optimal fitting and heat transfer Technical Data: • Nominal voltage: 115 or 230VAC, 50-60Hz • Heating element: Self-limiting • Power Connection: H07BQ-F, PUR coated, orange, acc VDE 0282 part 10 / HD 22.10 • Temperature Sensor: PT100 / Thermocouple • (optional): EEx-e or EEX-i • Surface resistance: <3*10⁵Ω/m² • Ambient Temperature: -55ºC…+50ºC • Protection grade: IP65 • Directives and Norms: Atex directive 94/9/EG • DIN EN 60079-0, DIN EN 60079-7 DIN EN 60079-30 DIN EN 13463-1 • Marking: ll 3G Ex e ll T5
