3-axis CNC milling machine Topas S3/S4, SL3/SL4
5-axis4-axisvertical

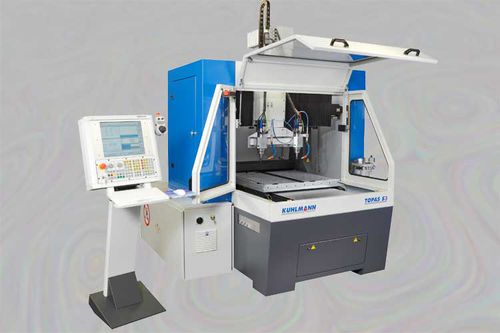

3-axis CNC milling machine - Topas S3/S4, SL3/SL4 - KUHLMANN Werkzeugmaschinen + Service GmbH - 5-axis / 4-axis / vertical
3-axis CNC milling machine - Topas S3/S4, SL3/SL4 - KUHLMANN Werkzeugmaschinen + Service GmbH - 5-axis / 4-axis / vertical
3-axis CNC milling machine - Topas S3/S4, SL3/SL4 - KUHLMANN Werkzeugmaschinen + Service GmbH - 5-axis / 4-axis / vertical - image - 2
3-axis CNC milling machine - Topas S3/S4, SL3/SL4 - KUHLMANN Werkzeugmaschinen + Service GmbH - 5-axis / 4-axis / vertical - image - 3
3-axis CNC milling machine - Topas S3/S4, SL3/SL4 - KUHLMANN Werkzeugmaschinen + Service GmbH - 5-axis / 4-axis / vertical - image - 4
3-axis CNC milling machine - Topas S3/S4, SL3/SL4 - KUHLMANN Werkzeugmaschinen + Service GmbH - 5-axis / 4-axis / vertical - image - 5
3-axis CNC milling machine - Topas S3/S4, SL3/SL4 - KUHLMANN Werkzeugmaschinen + Service GmbH - 5-axis / 4-axis / vertical - image - 6
3-axis CNC milling machine - Topas S3/S4, SL3/SL4 - KUHLMANN Werkzeugmaschinen + Service GmbH - 5-axis / 4-axis / vertical - image - 7
3-axis CNC milling machine - Topas S3/S4, SL3/SL4 - KUHLMANN Werkzeugmaschinen + Service GmbH - 5-axis / 4-axis / vertical - image - 8
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis, 5-axis, 4-axis
Spindle orientation
vertical
Structure
gantry
X travel

1,020 mm
(40.16 in)

Max.: 1,300 mm
(51.18 in)

Min.: 1,020 mm
(40.16 in)

Y travel

750 mm
(29.53 in)

Z travel

350 mm
(13.78 in)

Max.: 550 mm
(21.65 in)

Min.: 100 mm
(3.94 in)

Rotational speed

80,000 rpm
(502,655 rad.min-1)

Power

Max.: 16 kW
(21.75 hp)

Min.: 0 kW
(0 hp)

Work feed X-axis

50,000 mm/min
(33 in/s)

Work feed Y-axis

50,000 mm/min
(33 in/s)

Table load capacity

300 kg
(661 lb)

Weight

Max.: 3,500 kg
(7,716.18 lb)

Min.: 2,500 kg
(5,511.56 lb)

Overall length

1,840 mm
(72.4 in)

Overall width

2,000 mm
(78.7 in)

Overall height

3,000 mm
(118.1 in)

Description

Following the success of our model P25S, we have introduced our new line of Topas series milling and engraving machines. We have incorporated modifications based on customer requirements and further improved the functioning to provide the highest precision and accuracy possible. Topas line of machines includes S3, S4, and S5, representing 3, 4, and 5-axis control. S4 enables economical production of very long rollers. The extended line also includes SL3 and SL4, 3 and 4 axis-machines with linear drives, respectively. SL3 and SL4 provide outstanding alignment and precision with their Diadur glass scales and andronic KM3060 control. We are also equipped to provide customized solution to fit your specific requirements.
