3-axis CNC milling machine Saphir
4-axisverticalgantry

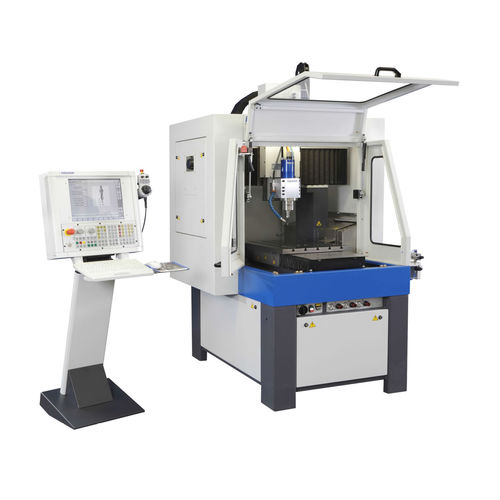

3-axis CNC milling machine - Saphir - KUHLMANN Werkzeugmaschinen + Service GmbH - 4-axis / vertical / gantry
3-axis CNC milling machine - Saphir - KUHLMANN Werkzeugmaschinen + Service GmbH - 4-axis / vertical / gantry
3-axis CNC milling machine - Saphir - KUHLMANN Werkzeugmaschinen + Service GmbH - 4-axis / vertical / gantry - image - 2
3-axis CNC milling machine - Saphir - KUHLMANN Werkzeugmaschinen + Service GmbH - 4-axis / vertical / gantry - image - 3
3-axis CNC milling machine - Saphir - KUHLMANN Werkzeugmaschinen + Service GmbH - 4-axis / vertical / gantry - image - 4
3-axis CNC milling machine - Saphir - KUHLMANN Werkzeugmaschinen + Service GmbH - 4-axis / vertical / gantry - image - 5
3-axis CNC milling machine - Saphir - KUHLMANN Werkzeugmaschinen + Service GmbH - 4-axis / vertical / gantry - image - 6
3-axis CNC milling machine - Saphir - KUHLMANN Werkzeugmaschinen + Service GmbH - 4-axis / vertical / gantry - image - 7
3-axis CNC milling machine - Saphir - KUHLMANN Werkzeugmaschinen + Service GmbH - 4-axis / vertical / gantry - image - 8
3-axis CNC milling machine - Saphir - KUHLMANN Werkzeugmaschinen + Service GmbH - 4-axis / vertical / gantry - image - 9
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis, 4-axis
Spindle orientation
vertical
Structure
gantry
Machined material
for steel, for copper, for non-ferrous metals, for granite
Associated functions
engraving, tapping
Applications
for the aluminum industry, for the automobile industry, for the aeronautical industry, for aeronautics, for the mold industry, for small parts production, CAD/CAM, for model making, for molds, for small workpieces, for aluminum profiles, for stainless steel alloys, for titanium, for graphite machining
Other characteristics
direct-drive, high-speed, compact, precision, HSC, with linear motor, for production, CE, for micro-machining, custom
X travel

500 mm
(19.69 in)

Y travel

600 mm
(23.62 in)

Z travel

350 mm
(13.78 in)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 80,000 rpm
(502,655 rad.min-1)

Power

Min.: 0.3 kW
(0.41 hp)

Max.: 16 kW
(21.75 hp)

Work feed X-axis

Min.: 0 mm/min
(0 in/s)

Max.: 50,000 mm/min
(33 in/s)

Work feed Y-axis

Min.: 0 mm/min
(0 in/s)

Max.: 50,000 mm/min
(33 in/s)

Table load capacity

300 kg
(661 lb)

Weight

Min.: 1,800 kg
(3,968.32 lb)

Max.: 2,000 kg
(4,409.25 lb)

Overall length

1,520 mm
(59.8 in)

Overall width

1,300 mm
(51.2 in)

Overall height

2,000 mm
(78.7 in)

Description

The P25CA is made up of compact design with 32bit multi-processor path control. It has maximum precision and reliability that assures for finest processing quality. Various configurations allow to design every machine according to its particular machining task. The P25CA has a working area of 500 x 600 x 200 mm. It has also an up to 4.5 / up to 60,000 kW milling spindle per minute.
