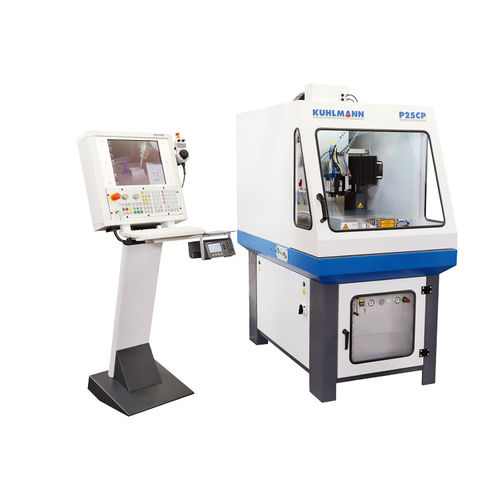

3-axis CNC milling machine P25CPverticalgantryfor steel
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- gantry
- Machined material
- for steel
- Associated functions
- engraving
- Applications
- for the mold industry, for model making, for molds
- Other characteristics
- high-speed, compact, high-precision
- X travel
500 mm
(19.69 in)- Y travel
580 mm
(22.83 in)- Z travel
100 mm
(3.94 in)- Rotational speed
Max.: 180,000 rpm
(1,130,973 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Work feed X-axis
Max.: 15,000 mm/min
(10 in/s)Min.: 0 mm/min
(0 in/s)- Work feed Y-axis
Max.: 15,000 mm/min
(10 in/s)Min.: 0 mm/min
(0 in/s)- Table load capacity
200 kg
(441 lb)- Positioning accuracy
1 µm
- Repeatability
1 µm
- Weight
800 kg
(1,763.7 lb)- Overall length
1,520 mm
(59.8 in)- Overall width
960 mm
(37.8 in)- Overall height
2,000 mm
(78.7 in)
Description
The P25CP is manufactured by Kuhlmann. It is has working area of 500 x 580 x 100 mm and feed rate up to up to 20 m/min. It also features CNC control of andronic KM2060 or KM4 control and milling spindle up to 180.000. Furthermore, two powerful PC-based 32bit multiprocessor path controls are available.
Catalogs
Topas SP / Topas L / P25CP
8 Pages
