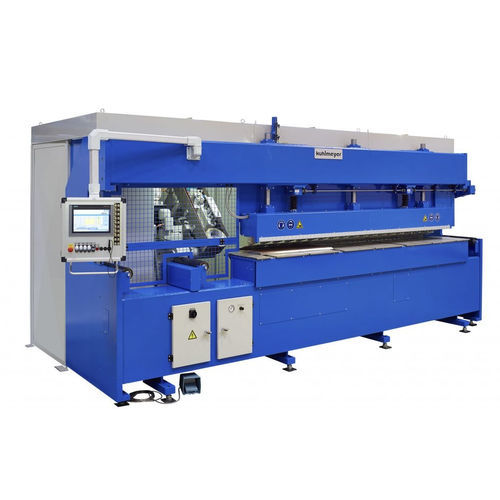

Electric beveling machine FF

stationaryindustryfor heavy loads

The Bevel Pro Type FF is designed for the high requirements of weld seam preparation without any critical heat influence on the material / edges. The simple machine concept, with two different table sizes, can be used for grinding and beveling of single side bevels and edges. The high-performance belt grinding process meets all requirements of precision bevels and strips, a clean and metallic-blank seam surfaces and minimal heat influence. Application areas: Steel-service-center Shipbuilding, shipyards Steel construction Crane production Technical data / Standard dimension: 2 table sizes with 1,5 m und 3 m Variant with open side frames for extended components Material removal rate up to 80 cm³/min Grinding belt speed up to 32 m/s Bevel angle from 0° to 60° Forward speed of grinding unit up to 5 m/min Machine control make by Siemens S7 Options / Variations: Open Sideframe. Longer workpieces can be machined by moving through the working area (workpiece longer then tablesize) Support jigs and transportation rolls for easy material flow and handling Adjustable Endstops Dust exhaust Noise- and Dustprotection housing Turnover device for workpieces Advantages of the BevelPro Type FF: Savings of approx. 40% of machining time by higher motor power and material removal rate in comparison to milling or roughing lathes Significant less investment and production costs then Milling lathes or plasma cutter With the state of the art grinding belts a high removal rate by constant quality can be reached. There is only a very low heat influence on the material surface, which grants a highly acceptance for further welding and surface preparation without additional work required
