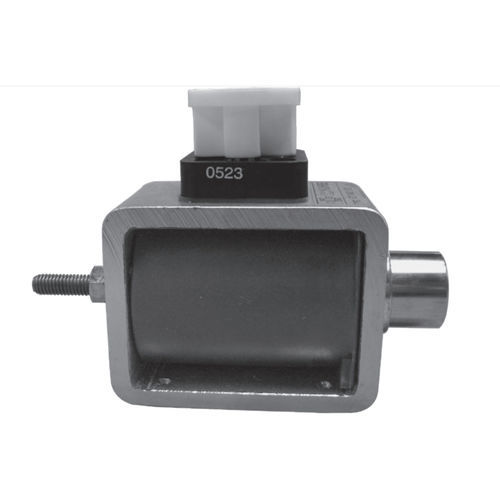

Linear solenoid GYDCelectromagnetic
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Other characteristics
- electromagnetic, DC
- Voltage
230 V
- Force
Min.: 0.7 N
Max.: 1,950 N
- Stroke
Min.: 5 mm
(0.2 in)Max.: 25 mm
(0.98 in)
Description
Lifting Solenoids of type group GY will be produced for DC connection. The cross section
dimensions (W x H) reach from 18 x 18 mm to 46 x 60 mm and the stroke lengths cover the
range from 5 to 25 mm. As a standard, these solenoids are provided for a large number of
assembling varations.
These solenoids are applicable for pulling or pushing operation. The movement from stroke
starting- to stroke limit-position is performed by the electromagnetic force; for resetting,
an external power source (spring or weight) is needed.
