Linear solenoid GUDCelectromagnetic
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Other characteristics
- electromagnetic, DC
- Voltage
24 V
- Force
Max.: 950 N
Min.: 14 N
- Stroke
1.3 cm, 1.5 cm, 2 cm, 2.5 cm, 3 cm
(0.51 in, 0.59 in, 0.79 in, 0.98 in, 1.18 in)
Description

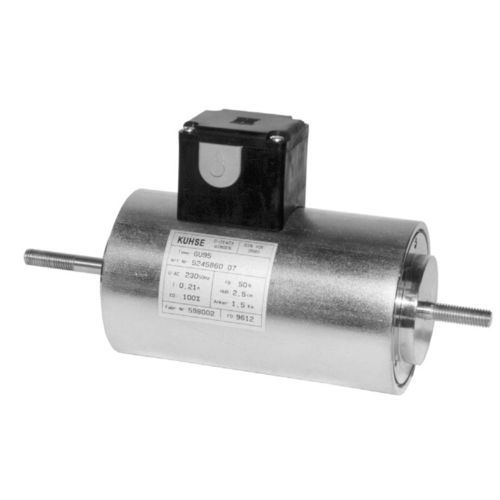

Solenoids of model range type GU may be produced in sizes of 55 mm to 160 mm diameter
and with stroke lengths between 13 mm and 50 mm. As a standard pattern, these solenoids
are manufactured with rods (threaded) at both ends, to be suitable for pulling or pushing
operation.
Substantially, all technical statements as given under the section of DC solenoids of type GH,
refer also to these GU types. The movement from stroke starting- to stroke limit-position is performed by the electromagnetic force of one coil system; for resetting, the electromagnetic force of the other coil system will be used.
