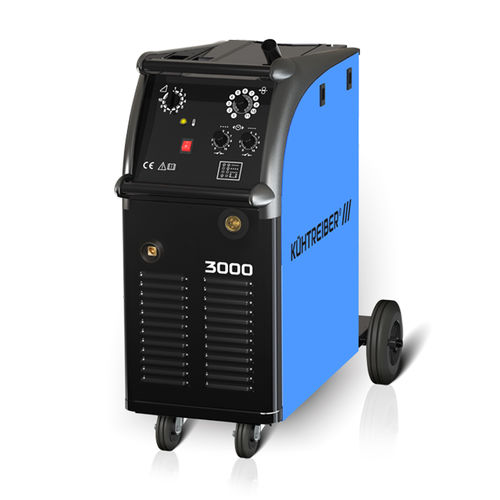

MIG-MAG welder KIT 3000

three-phasemobileelectronic

Compact three-phase MIG/MAG welding machines. KIT 3000 are professional welding machines equipped with a high-powered transformer, robust wire feeder with an efficient motor, EURO connector and electronic control. The main advantages of machines KIT are excellent welding properties, 10-grade voltage control, the possibility of high load machines with new construction, modern design, reliability and the simple control. PROPERTIES AND EQUIPMENT 2-STROKE / 4-STROKE EASY USE SPOT PULS TEST GAS GENERATOR PRE-GAS / POST-GAS (only PROCESSOR) FEED BACK (only PROCESSOR) UP-DOWN (only PROCESSOR) SOFT START (only PROCESSOR) TEST GAS (only PROCESSOR) Input power 50/60 Hz - 3x 400 V Protection – slow - 16 A Welding current range - 30 – 250 A Output voltage range - 17.7 – 39.2 V Duty cycle 100 % - 190 A Duty cycle 60 % - 210 A Duty cycle 45 % - 250 A Mains current/input 60 % - 9.6 A / 7 kVA Winding - Cu/Al Number of adjustment points - 10 Digital volt-ampere meter - only PROCESSOR Wire feeder - 4-roll Standard equiped roll - 0.8 – 1.0 mm Wire feeder speed - 1 – 20 m/min Material of wire – Steel, Stainless steel / Aluminium / Cored wire - yes Ingress Protection - IP 21 S Dimensions - 902 × 510 × 890 mm Weight - 75 kg
