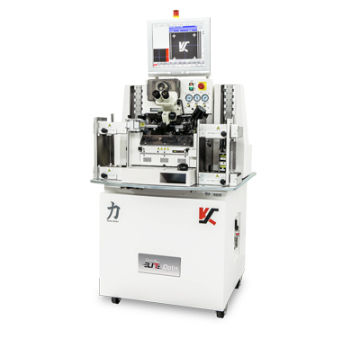

Automatic wire bonder ConnX ELITE™ Opto
high-speed

automatic wire bonder
automatic wire bonder
Add to favorites
Compare this product


Characteristics

Options
automatic, high-speed

Description

ConnX ELITE™ Opto is the latest high speed automatic wire bonder in the industry leading Power Series. Updated motion control systems and the Quick-LED Suite processes deliver maximum productivity and simplified process optimization. ConnX ELITE Opto is the new standard in interconnection for LED packages. Key Features: Bondable area of 56 x 80 mm ± 3.0 μm accuracy @ 3 sigma New high speed X-Y-Z motion control and vision systems New proprietary Quick-LED Suite provides robust process performance at maximum UPH Interactive Programmable Look Ahead Vision for ease of set-up for maximum throughput Complete Illumination System with automatic adjustment for PRS robustness Single 2x magnification optics Auto SHTL and NSOL Recovery for improved MTBA performance Auto-BITS self-teach and optimization Field Upgrade Path: ConnX ELITE Opto LA (Large Area) ConnX ELITE Opto ELA (Extended Large Area)
