Automatic filler VD-2_OT+KAP923 seriesbottlefor liquidsvolumetric
Add to favorites
Compare this product
Characteristics
- Operational mode
- automatic
- Container type
- bottle
- Product applications
- for liquids
- Type
- volumetric, piston, linear
- Throughput
1,200 p/h
- Volume
Max.: 5,000 ml
(169.1 US fl oz)Min.: 100 ml
(3.4 US fl oz)
Description
Which products you may fill with this machine?
This automatic filler is designed to fill liquid,semi liquid ,viscous (paste) and products with particles into the glass and jars & bottles.
TECHNICAL SPECIFICATIONS

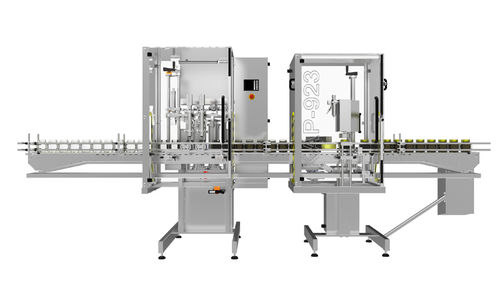

* KULP EASY LINE is a functional and compact filling line contains filling and capping systems.This machine consists of two separate stations.The caps are placed manually by the employees between the filling and capping stations.
* Works with volumetric piston system.
* Works with oil-free pneumatic system.
* Touch Panel Control System
* Easy to adjust the filling range from the numerator and hand wheels.
* The parts on the machine are connected by tri clamps. They can be easily dismantled. The nozzle, main valve and the filling piston are designed for an easy-cleaning .They can be dismantled easily without using any tool.
* Optionally the machine inserts C.I.P. system.
* Different type of nozzles according to the product,to be filled ,with anti dropping system.
* Capping systemdesigned for capping plastic screw caps,metal twist-off caps,push on caps
