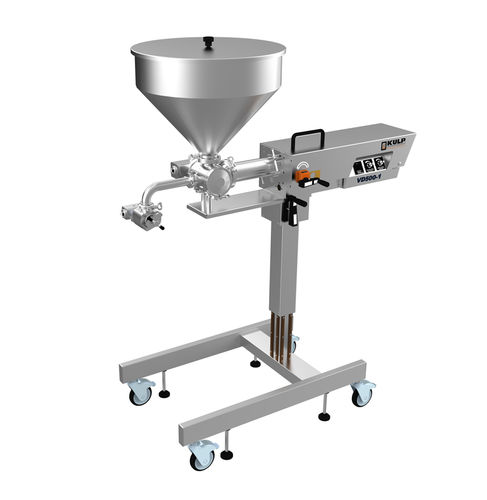

Semi-automatic filler VD500-1

bottlefor viscous productsfor liquids

Which products you may fill with this machine? Liquid Products Viscous Products Products with particles inside TECHNICAL SPECIFICATIONS * This OEM model is especially designed to install on linear or therform packaging machines as a filling station.The height adjustment of the machine can be adjusted to height of 250 mm between the min. and max. heights of packages. * Works with pneumatic system. * Can be controlled from the main machine PLC via electro pneumatic valve. * Primes the product from its 80 lt. stainless steel hopper above. * Interchangeable nozzle with a code of VNS03 for the products with particles inside up to 30 mm diameter like jam, american salad etc. * There is a heigth adjustable platform on the filler to place the packages during the filling process. * The machine is exproof system. * The seals are manufactured from teflon ,viton or polyethylene according to the product to be filled. * The parts on the machine are connected by tri clamps. *The nozzle, main valve and the filling piston are designed for an easy-cleaning .They can be dismantled easily without using any tool. * High surface smoothness and argon arc welding technology prevents bacteria growth. *The machine stands on a stainless steel frame which is supprted by 4 castors, it can be easily move to anywhere. * Easy to adjust and record the filling range by the numerator and the hand wheels. * A detailed instruction manual for each model is available.
