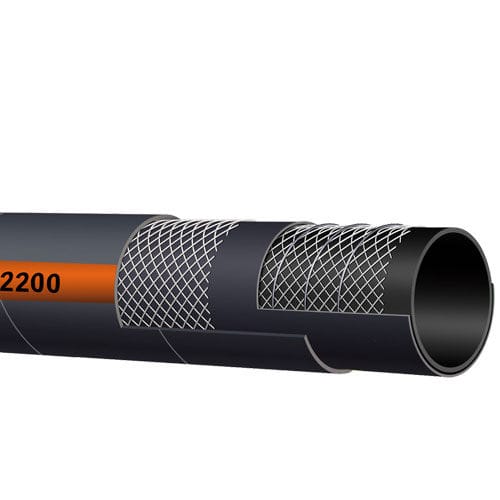

Fuel hose RYLTEC 2200
for hydrocarbonsrubbersuction

fuel hose
fuel hose
Add to favorites
Compare this product


Characteristics

Use
for fuel, for hydrocarbons
Material
rubber
Applications
suction, discharge, transfer
Other characteristics
standard, reinforced, spiral wire
Inner diameter

Min.: 19 mm
(0.748 in)

Max.: 152 mm
(5.984 in)

Outer diameter

Min.: 30 mm
(1.181 in)

Max.: 168 mm
(6.614 in)

Pressure

16 bar
(232.06 psi)

Temperature

Min.: -30 °C
(-22 °F)

Max.: 70 °C
(158 °F)

Delivered length

20 m, 40 m
(65'07" , 131'02" )

Description

Hose for hydrocarbon suction and propulsion, unloading trucks, fuel transfers with a maximum aromatic content of 50%, and oils in return line circuits. Marking: RYLTEC 2200 FUEL & OIL SUCTION AND DISCHARGE - WP 16 BAR (240PSI) - Ref. Ø

Catalogs

No catalogs are available for this product.

See all of KURIYAMA EUROPE‘s catalogs
