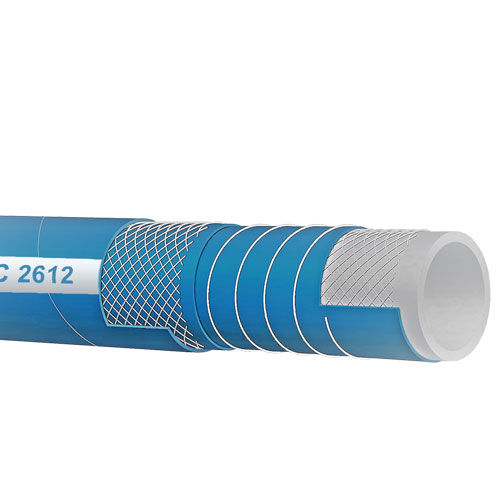

Alcohol hose RYLTEC 2612beveragefor oilrubber
Add to favorites
Compare this product
Characteristics
- Use
- alcohol, beverage, for oil
- Material
- rubber
- Applications
- suction, discharge, FDA
- Other characteristics
- standard, reinforced, spiral wire
- Inner diameter
Max.: 76 mm
(2.992 in)Min.: 19 mm
(0.748 in)- Outer diameter
Max.: 88 mm
(3.465 in)Min.: 31 mm
(1.22 in)- Pressure
10 bar
(145.038 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: -30 °C
(-22 °F)- Delivered length
40 m
(131'02" )
Description
Mandrel hose for suction and propulsion of food products, such as olive oil, fatty products, milk, wine, beer, fruit juice, yoghurt, and 96% alcohol.
Standard length: Available in 40m lengths.
Temperature: -30°C to +80°C
WP: 10 bar / FDA Standard - Title 21 177.2600 / ISO1307
Marking: RYLTEC 2612 - FAT FOOD % BEVERAGES SUCTION AND DISCHARGE - WP 10 BAR (150PSI) - FDA - Ref. Ø
