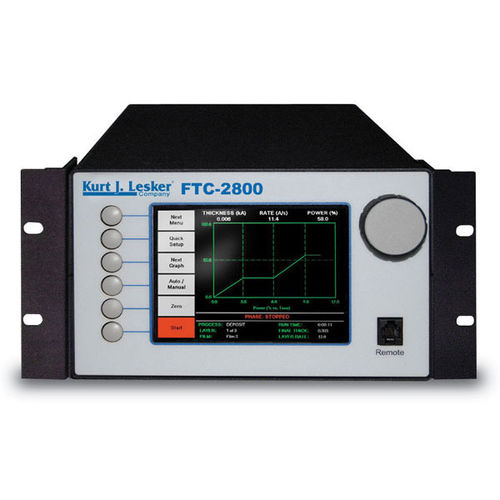

PVD deposition machine FTC-2800

thin-film

The FTC-2800 deposition controller provides an economical way of doing sequential deposition. This affordably priced controller comes standard with (2) Sensor Inputs, (2) Source Outputs, (8) Digital I/O, RS-232 and USB Serial Ports, a bright 1/4VGA Active Matrix Color LCD Display. Included with each package is user friendly Windows® Software, Power Cord, RS-232 Cable, I/O Connector and User's Manual. Bright, 1/4 VGA active matrix color LCD display - available in English or Chinese. Standard RS-232 and USB (with Ethernet option). Easy setup and operation with a "Quick Setup" Menu Windows® program for developing, testing, and downloading processes, and for logging instrument data to your PC Accurate process control, especially for low deposition rates, with ±0.03 Hz resolution at 10 readings/second Storage capacity for up to 100 processes, 1,000 layers, 50 films. Monitoring of source material with a single sensor or with multiple sensors to provide accurate source distribution monitoring.
