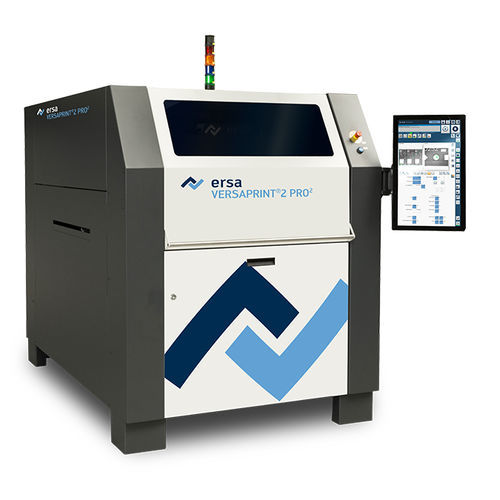

Automatic stencil printer VERSAPRINT 2 PRO2

solder pasteSMThigh-accuracy

World´s first stencil printer with integrated 3D inspection With the fast 2D LIST camera (LIST = Line Scanning Technology), the Ersa Stencil Printer VERSAPRINT 2 PRO² is particularly suitable for products with high inspection requirements. The system can be upgraded or retrofitted with all options of the VERSAPRINT 2 series. United in efficiency: The VERSAPRINT 2 ULTRA³ is the world's first stencil printer with integrated 3D inspection. Substrate size (X x Y): min. 50 x 50 mm, max. 680 x 500 mm (inspection area 550 x 500 mm) Print head: two independent squeegee heads with continuous squeegee force control, squeegee depth stop and pendulum limitation Optional stencil cleaner: 680 x 500 mm - Squeegee force: 0-230 N - Substrate thickness: 0.5-6 mm - Camera: 3D line scan camera for alignment and inspection of substrate and stencil
