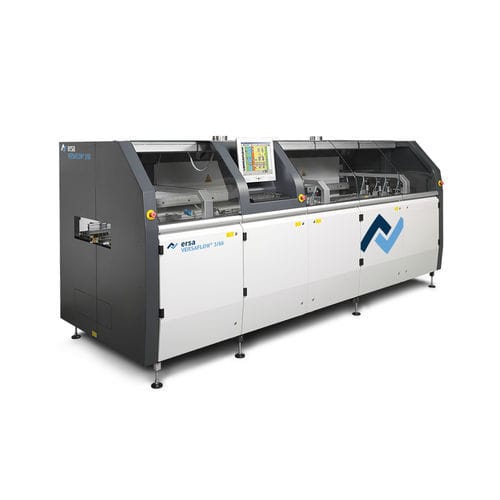

Automatic selective soldering machine VERSAFLOW 3/66

flexiblefor PCB

Modularity for highly flexible selective soldering of XL boards • Highest throughput in the entire selective soldering market • Most sold selective machine platfoem worldwide • Safe process control with monitoring of all relevant parameters • ­Full modularity - suitable for every customer requiremen • Length: 2.950 mm • Width: approx. 1.900 mm • Height: approx. 1.650 mm • Pin chain transport or roller transport • PCB width: 63,5-610 mm • PCB length: 127-610 mm • Maximum PCB build-up at the top up to 120 mm • Maximum PCB build-up at the bottom up to 60 mm (30 mm with z-variable modules) • Maximum PCB weight: 5 kg (optional 15 kg) • Fluxer: Drop-Jet in different sizes • Preheater: IR radiator heating, convection or combination of IR and convection • Soldering module: • Electromagnetic solder pot • 3 module with up to 6 pots, solder volume 13 kg/pot
