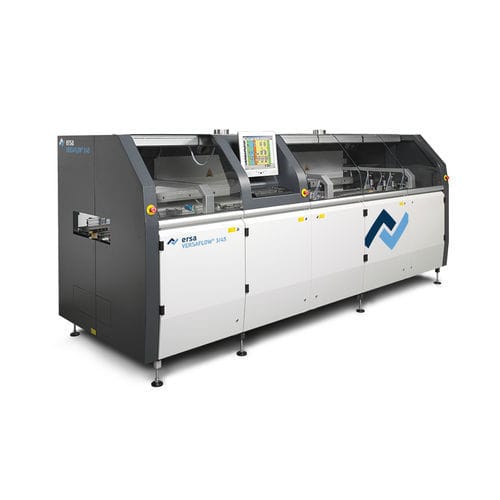

Inline selective soldering machine VERSAFLOW 3/45

for PCB

The first inline selective system with double transport • Highest throughput in the entire selective soldering market • Most sold selective machine platform worldwide • Safe process control with monitoring of all relevant parameters • Full modularity - suitable for every customer requirement The Ersa VERSAFLOW 3/45 is the first inline selective soldering machine with dual transport - offering maximum flexibility and highest throughput with the smallest footprint. • Length: from 2,450 to 7,500 mm • Width: approx. 1.750 mm • Height: approx. 1.650 mm • Pin chain transport or roller transport • PCB width: 63,5-508 mm (option 600 mm) • PCB length: 127-508 mm (option 600 mm) • Maximum PCB build-up at the top up to 120 mm • Maximum PCB build-up at the bottom up to 60 mm (30 mm up to z-variable) • Maximum PCB weight: 5 kg (optional 15 kg) • Fluxer: Drop-Jet in different sizes • Preheater: IR radiator heating, convection or combination of IR and convection • Soldering module: • Electromagnetic solder pot • Mini-wave 13 kg with up to 6 pots • Multi-wave soldering area up to 356 x 356 mm / 360 x 460 mm / 370 x 425 mm • PCB size up to 406 x 508 mm
