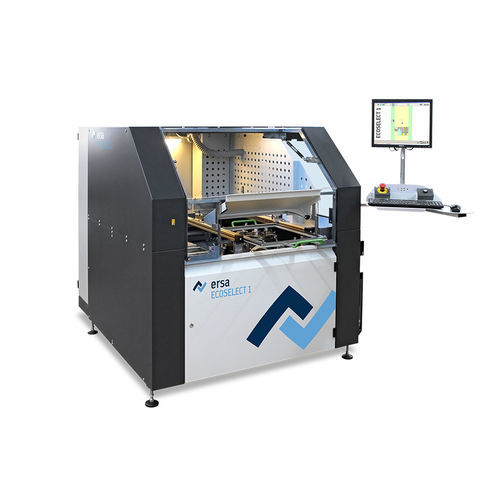

Mini-wave selective soldering machine ECOSELECT 1

automaticfor PCBcompact

Small Selective Soldering System with outstanding technology. • Compact batch system with small space requirement • Same components and software modules from the well-known VERSAFLOW 3 platform • Highest quality of the products, also in the entry level of selective soldering • Length: 1,700 mm • Width: 1,500 mm • Height: 1,612 mm • Universal mask holder • PCB width: 15-406 mm (optional 508 mm) • PCB length: 15-508 mm • Maximum PCB build-up at the top up to 120 mm • Maximum PCB build-up bottom up to 60 mm (30 mm to z-variable) • Maximum PCB weight: 8 kg (optional 12 kg) • Fluxer: Drop-Jet in different sizes • Preheater: IR heating , convection or combination of IR and convection • Soldering module: • Electromagnetic solder pot • Mini-wave 13 kg, up to 2 pots
