Automatic rework station HR 600/3P

automatic rework station
automatic rework station
automatic rework station
Add to favorites
Compare this product


Characteristics

Operational mode
automatic

Description

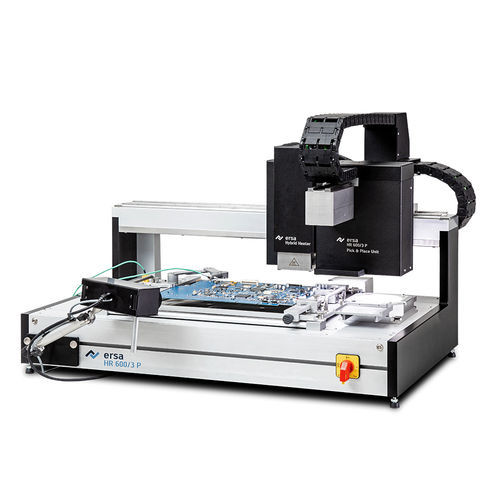

The Ersa Rework System HR 600/3P enables automatic repair of SMT components such as BGA and MLF up to edge lengths of 1 x 1 mm with precision and reliability. HRSoft 2´s graphical user interface enables effortless process selection and operation for any user. The Technology of Ersa Rework Systems sustainably secures the added value of electronics: • gentle heating technology • sensor guided soldering processes • contactless residual solder removal • precise component placement • complete process documentation • clear user guidanceg • High-precision axis system (X, Y, Z) and high-resolution cameras • Automated component placement as well as soldering and desoldering processes • Hybrid heating head with two heating zones • Large-area, powerful IR underheating in three zones • Non-contact temperature measurement with digital sensor • Three K-type thermocouple inputs for Accu-TC sensor • Effective assembly cooling with compressed air • Dimensions (WxDxH) in mm: 850 x 660 x 573 • Weight in kg: 65 • Anstistatic Design (y/n): yes • Power Rating in W: 3.200 • Nominal Voltage in V AC: 220 V - 240 VAC, 50-60 Hz, 16 A • Top heating: hybrid radiator 800 W, in two zones, 60 x 60 mm • Bottom heating: IR heater (3x 800 W), 380 x 250 mm • Measuring channels: 3x K-type, 1x IRS • Position laser: Class II • PCB size in mm: up to 390 x 300 mm (+x), up to 535 x 300 mm (+x), (0HR600/3PL) • PCB size in mm: 1 x 1 mm up to 60 x 60 mm • Axis accuracy: up to +/- 25 µm • Top placement camera: 5 MP GigE color camera • Component camera bottom: 5 MP GigE black and white camera • Working distance (typical): 30-60 mm to top heater, 35 mm to bottom heater
