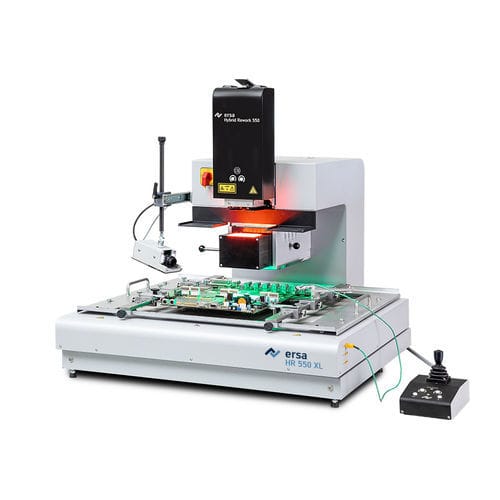

Semi-automatic rework station HR 550 XL

Large and flexible: guided rework for large boards up to 530 x 610 mm With the Rework System HR 550 XL, Ersa presents a semi-automatic unit for large assemblies up to approx. 530 x 610 mm - a real performance package with eight bottom radiator heating zones and motorized X/Y fine adjustment and component rotation. The system is suitable for industrial and power electronics as well as large-format boards and is particularly attractive for service providers. The Technology of Ersa Rework Systems sustainably secures the added value of electronics: • gentle heating technology • sensor guided soldering processes • contactless residual solder removal • precise component placement • complete process documentation • clear user guidance • 1,800 W high-performance hybrid heating element • Full-surface 6,400 W IR bottom heater • High-resolution cameras for placement and process monitoring • Computer-aided component alignment, digital split optics • Ergonomically optimal system operation • Modern, user-friendly operating software • Dimensions (W x D x H) in mm: 755 x 930 x 545/747 • Weight in kg: 102 kg including control unit • Antistatic Design (y/n): yes • Power Rating in W: 8.200 • Nominal voltage in V AC: 3x 400 VAC, 50-60 Hz, 16 A • Upper heating: Hybrid radiator 900 W infrared + 900 W hot air, 70 x 70 mm • Lower heating: IR emitter (8x 800 W), 530 x 530 mm • Measuring channels: 3x K-type, 1 x IRS • Position laser: Class II • PCB size in mm: up to 530 x 610 mm (+x) • Component size in mm: from 01005 up to 70 x 70 mm • Working depth: 349 mm • Usable working distance (typ.): 30-60 mm to top heater, 35 mm to bottom heater
