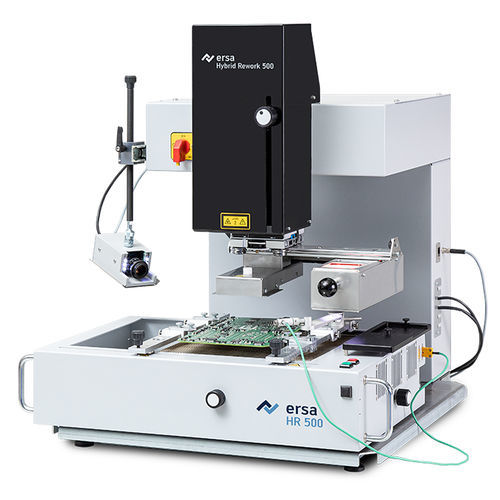

Automatic rework station HR 500

Flexible desoldering, placement and soldering of SMT components The Rework System HR 500 offers the full Ersa Hybrid Rework technology for budget-oriented users. The little brother of the HR 550 allows flexible repairs of standard assemblies up to 380 x 300 mm and 50 x 50 mm component size. The Technology of Ersa Rework Systems sustainably secures the added value of electronics: • gentle heating technology • sensor guided soldering processes • contactless residual solder removal • precise component placement • complete process documentation • clear user guidance • 900 W Hybrid high-performance heating element • Full-area 1,600 W IR bottom heater • High-resolution cameras for placement and process monitoring • Ergonomically optimal system operation • Modern, user-friendly operating software • Dimensions (W x D x H) in mm: 655 x 645 x 710 • Weight in kg: approx. 55 • Antistatic Design (y/n): yes • Power Rating in W: 2,500 • Nominal voltage in V AC: 220 V - 240 VAC, 50-60 Hz, 16 A • Upper heating Hybrid heater: 900 W, 70 x 70 mm • Lower heating IR emitter: (2x 800 W), 270 x 270 mm • Measuring channels: 2x K-Type • Position laser: Class II • PCB size in mm: up to 380 x 300 mm (+x) • Component size in mm: from 1 x 1 up to 50 x 50
