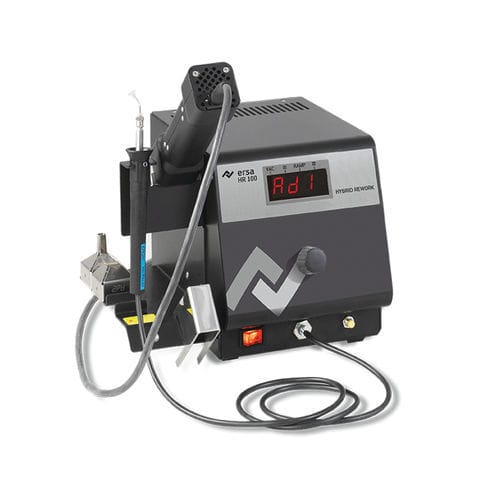

Hot air rework station HR 100

automatic

The Rework System HR 100 uses the revolutionary and patented Ersa Hybrid Rework technology to safely desolder and replace small SMDs. The medium wave IR radiation combined with a gentle hot air jet guarantees optimal energy transfer to the component. The Technology of Ersa Rework Systems sustainably secures the added value of electronics: • gentle heating technology • sensor guided soldering processes • contactless residual solder removal • precise component placement • complete process documentation • clear user guidance • Patented hybrid rework technology (combination of IR heating technology and convection) for safe desoldering and soldering • Optimum energy transfer and gentle heating of chip components 0201 up to 20 x 20 mm SMDs • No blowing away of neighbouring components • Optionally available with stand, 800 W IR bottom heating and PCB intake • Optionally with stand, 800 W IR underheater and PCB holder • Vac Pen for safe handling of devices • Dimensions (W x D x H) in mm: 211 x 220 x 168 • Weight in kg: 4.5 • Antistatic Design (y/n): yes • Power Rating in W: 200 • Nominal voltage in V AC: 230 • Upper heating: 200 W (Hybrid Tool) • Component size in mm: 1 x 1 bis 20 x 20 • Operation: One-touch operating button or Windows PC • Test symbol: CE
