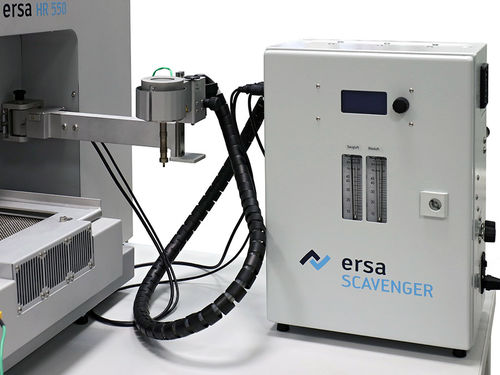

Solder tip cleaner Scavenger

... for the Ersa HR 550 and HR 550 XL rework systems. With the Ersa Scavenger, both rework systems can additionally be equipped with non-contact residual solder extraction. The Technology of Ersa Rework Systems sustainably secures the added value of electronics: • gentle heating technology • sensor guided soldering processes • contactless residual solder removal • precise component placement • complete process documentation • clear user guidance • High-quality 400 W hot gas/vacuum cartridge in suction head • Spacious solder collecting tank • Process gas cleaning • Integration possible in HR 550 or HR 550 XL • Process control via HRSoft 2 and clearly arranged operating elements • Dimensions (W x D x H) in mm: 300 x 210 x 420 mm • Dimensions: required table space approx. 600 x 500 mm • Weight in kg: 18,5 • Antistatic Design (y/n): yes • Power Rating in W: 400 • Nominal voltage in V AC: 230 • Upper heating: hot gas • Compressed air connection: 60 l/min at 6 bar, oil free, quick coupling ¼ inch • Component size in mm: all common SMD pad formats • Operation: set elements and HRSoft 2 • Test symbol: CE
