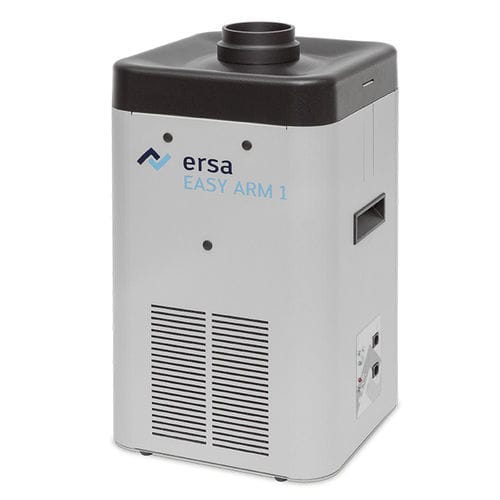

Floor-standing fume extractor EASY ARM 1

solderingactivated carbon filter

The Ersa EASY ARM solder fume extraction units impress with their high extraction performance and whisper-quiet operation. The basis of the Ersa solder fume extraction system type EASY ARM 1 is many years of experience in cleaning process air. The EASY ARM 1 solder fume extraction systems are characterized by high extraction performance (100 m³/h per extraction arm), efficient filter performance and, at the same time, very quiet operation. The process air is cleaned in three stages: A pre-filter retains dusts and larger particles. The combi-filter separates micro-particles, such as those produced during soldering, and the activated carbon filter binds harmful gases. • Continuously settable extraction power • Effective 3-stage filter system - 99,95% filter degree • 100 m³/h air flow per extraction arm • Optical and acoustical reminder signal for filter exchange • High performance filter materials, filters fit to both systems of the EASY ARM series • Interface to connect to an i-CON soldering station or a standby-switch • Flexible system of extraction arms and nozzles allows individual setup for each workplace • Small footprint The Ersa EASY ARM 1 & 2 solder fume extractors ensure healthy breathing air during soldering with high extraction power and efficient filter performance - and more quietly and efficiently than ever before.
