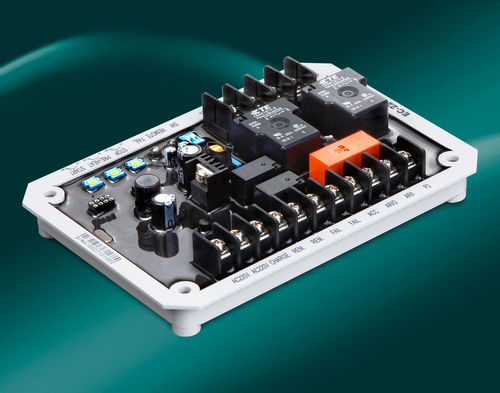

Auto start module EC-22

Auto Start Control Unit designed for DENYO generators. It can accept signals from a remote switch or an automatic transfer switch (ATS) to automatically start or stop the generator. EC-22 is controlled by a microprocessor for full digital processing. reliable performance. Works with both 12V and 24V generators. * All manufacturer names and numbers are used for reference purpose only and do not imply that any part is the product of these manufacturer. ● Specially designed for DENYO generators without Auto Start function ● Microprocessor-based programmable controller ● Small size, low cost and high stability ● Zero power consumption in standby mode, no battery power loss. ● Multi-turn Potentiometer for Pre-heat, Start & Fail time delay settings ● Three cranking attempts ● Generator fault indicator and alarm output contacts ● Terminal block connections for easy installation and maintenance ● Energize-to-Run and Energize-to-Stop options ● Works with both 12V and 24V generators (DIP SW setting) ● The circuit board is potted with UL94-V0 rated epoxy resin to allow use in harsh environments
