OCXO oscillator O-30CXXXX-LPN-LGS

electroniclow phase noiselow G-sensitivity

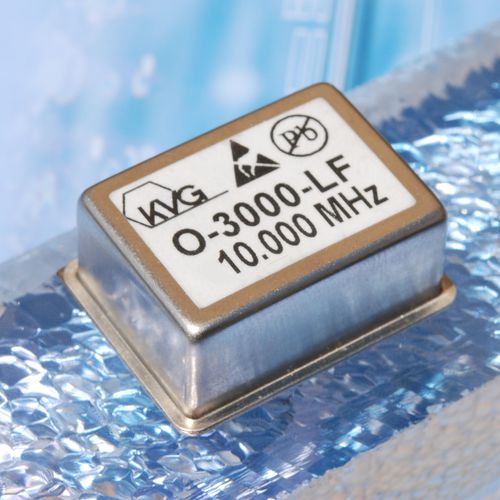

O-30CXXXX-LPN-LGS-LF is a 10.000 MHz high performance ‘Oven Controlled Crystal Oscillator’ (VC)OCXO offering exceptional low phase noise (LPN), low G-Sensitivity (LGS) and tight frequency stability. The RoHS-compliant part (LF) comes in a small sized hermetically sealed metal can package (36 x 27 mm) what makes it suitable for humid climate environment. Features -120 dBc / Hz @ 1 Hz -148dBc/Hz @ 10 Hz Output signal: 'True Sinewave' Frequency Stability: ± 20 ppb Frequency Tuning Range ± 0.4 ppm Long-Term Stability ± 0.1 ppm in 10 Years Hermetical seal metal-package (36 x 27 mm) Supply voltage +12.0 V Operating temperature – 40ºC to +85 ºC Applications Instrument Reference Microwave Communication Systems Clock Reference for Microwave Signal Sources Radar Systems
