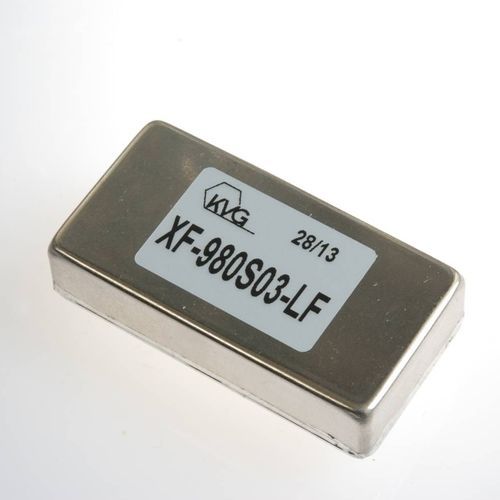

Band-pass electronic filter XF series

passive

Crystal-filter with 2 up to 16 poles in metal package hermetically sealed for wave soldering and hand soldering. Center frequency defined between 5 MHz and 200 MHz. For any other frequency please contact us. Monolithic-filter design or filter implemented with passive components. Two groups defined 1. Filter with very low ripple in Chebyshev- or Butterworth-characteristic (Selection filter) 2. Filter with low group delay in EQR, Gaussian or Bessel-characteristic (Linear phase filter) Operating input power 0dBm/1mW; max (peak) input power 10dBm/10mW Temp range from -55°C…+105°C RoHS and REACH conform
